Software Snooky Mobile screen guard and skin with daily update New Models
9H screen Guard material, TPU
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials
Processing size 300mm x 200mm
Whole machine size 800 x 500x 250mm
Laser power 50w(CO2 sealed glass tube)
Power supply AC 220V/110V
Cutting thickness 0-6mm(determined by material)
Cutting Speed 0-1000mm/min
Engraving speed 0-1000mm/min
Location precision 0.01mm
Gross power <350W
Operating temperature 0 – 45°C
Operating humidity 8 – 95%
Minimum shaping character English 0.8 x 0.8mm
Computer system 2000, XP, win 7 etc
Software Snooky Mobil screen guard and skin with daily update LaserDRW, CorelDRAW, etc
Driving system step motor
Cooling mode water-cooling and protection system
Package size 117 x 66x 36cm (wooden package)
Package weight 45KGS
1, there are two running guide rail optional, ensure the laser head running smoothy and high speed.

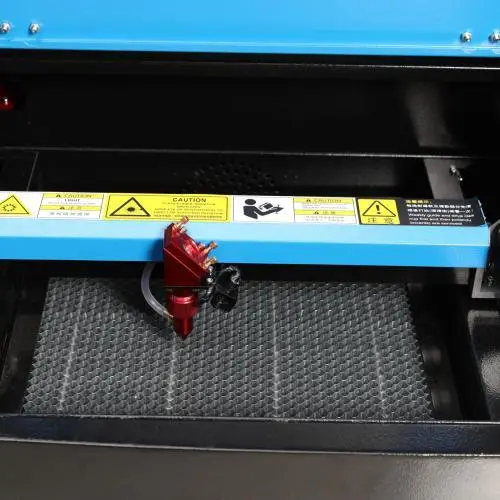

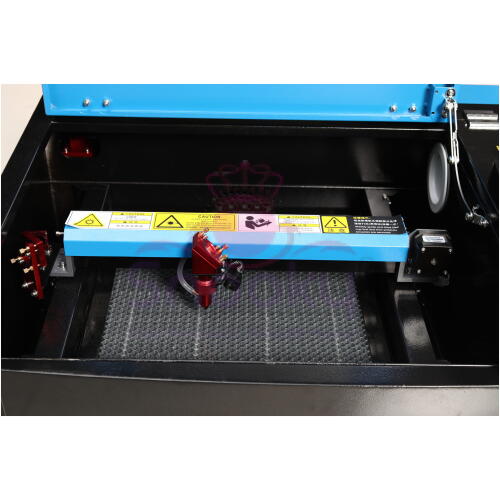

2, With high quality laser cutting head, can reach faster speed and good effect. and with air blowing, for blowing
smoke when machine working to prevent fire.
, 3 , Up and down table by hand, can reach 5cm up and down, suitable for different thickness material.
4, Two table optional( small clamp and big clamp table), both these two table can add honeycomb table( for
engraving and cutting small and big items).
5, M2 Nano mainboard, ensure the system stable, can support LaserDRW, WinsealXP, CorelDRAW software, friendly operation.
6, high lifetime laser tube, up to 6000
